Product Detail

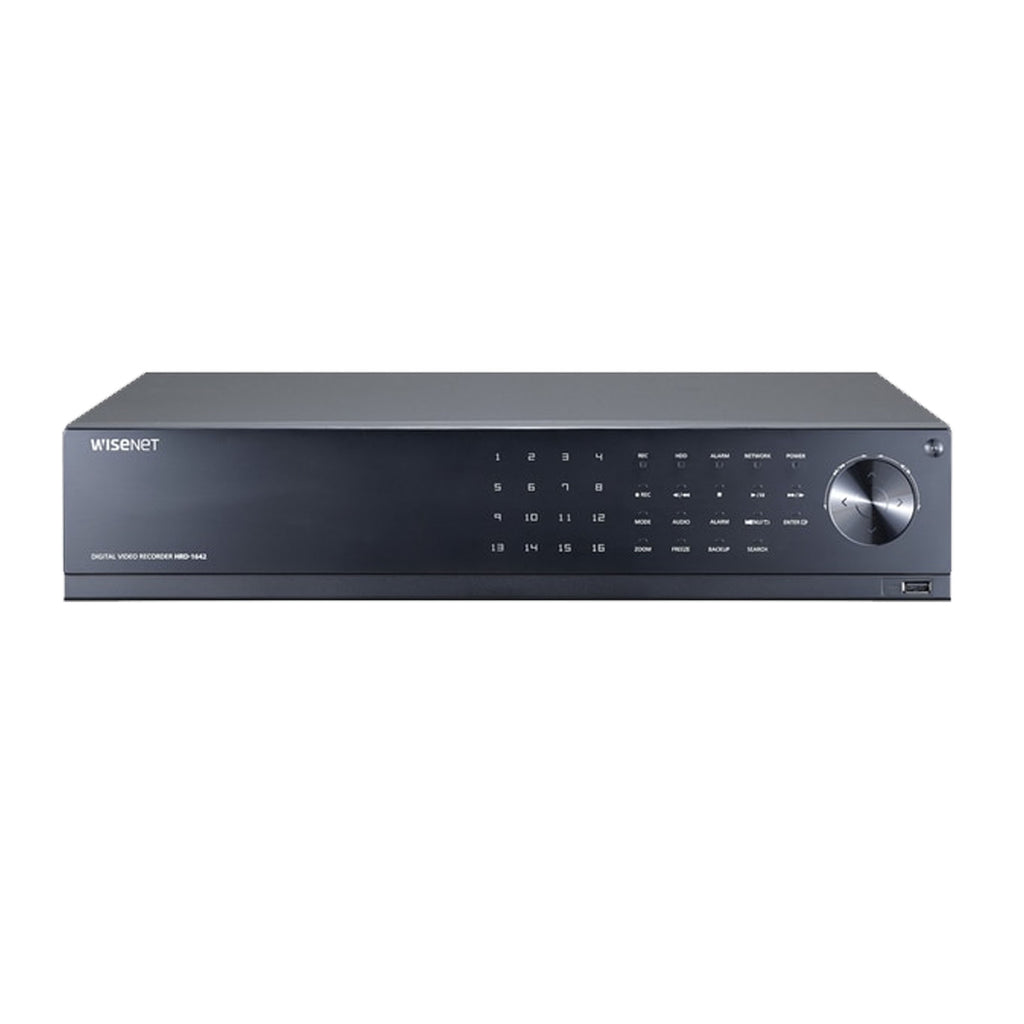

Samsung HRD-1642

Key Features: 16CH 4MP AHD DVR TVI, CVI (Max. 2MP), Analog camera input support Up to 240 / 200 (4M)fps recording rate Up to 480 / 400 (1080p)fps recording rate...

Contact Us





Key Features:

  • 16CH 4MP AHD DVR
  • TVI, CVI (Max. 2MP), Analog camera input support
  • Up to 240 / 200 (4M)fps recording rate
  • Up to 480 / 400 (1080p)fps recording rate
  • HDMI / VGA video output

16 Channels

Specifications:

Video

Video System

16CH BNC, : AHD (4MP), TVI (2MP), CVI (2MP), NTSC / PAL

Video Compression Format

H.264



Video Signal



Analog HD / TVI / CVI / 960H

Video Input



16CH line in (Built-in 4CH, Option : Audio extension cable)

Video Output

BNC YES (Main Monitor / Call Monitor selectable)

VGA YES

HDMI YES

Video Resolution

2560 x 1440, 1920 x 1080, 1280 x 720, 960 x 480, 704 x 480, 960 x 576, 704 x 576



Record & Backup

Max. Recording Rate

NTSC : Up to 240fps@4MP / PAL : Up to 200fps@4MP NTSC : Up to 480fps@1920 x 1080 / PAL : Up to 400fps@1920 x 1080 NTSC : Up to 480fps@1280 x 720, 928 x 480, 704 x 480, 704 x 240, 352 x 240 PAL : Up to 400fps@1280 x 720, 928 x 576, 704 x 576, 704 x 288, 352 x 288

Recording Mode



Manual, Schedule (Continuous / Event), Event (Pre / Post), Time lapse (1 ~ 30fps(N), 1 ~ 25fps(P))

Pre-alarm Recording



Up to 30 sec (5, 10, 20, 30 sec)

Playback Channel



Fast forward / backward (2x, 4x, 8x, 16x, 32x, 64x) *Backward play with i-frame only Slow forward / backward (1/2x, 1/4x, 1/8x) Step Forward / backward ※ Backward play with I-frame only

Backup Device



e-SATA, USB (for Backup

Regular Backup

YES

Audio

Audio Input



16CH line in (Built-in 4CH, Option : Audio extension cable)

Audio Output

1CH line out

General

Hard Disk Storage

Up to 8 SATA HDDs (0 ~ 8TB HDDs)

SATA Interface

YES

USB Mouse Control

YES

Event Notification

Notification Via E-mail

PTZ Control

YES

Alarm I/O

Terminal 16 inputs (NO/NC) / Terminal 4 Relay outputs (NO/NC), Rating : 30V DC / 2A, 250V AC / 0.25A

Key Lock

(Password Protection) YES

Video Loss Detection

YES

RS485

YES

Power Source (±10%)

100 ~ 240V AC ±10%, 50/60 Hz

Operating Temperature

+0°C ~ +40°C (+32°F ~ +104°F)

Operating Humidity

20% ~ 85% RH

Dimensions

440 x 88.0 x 384.8mm (17.32” x 3.46” x 15.15”

Net Weight

Approx. 5.78Kg (12.74 lb)

Network

Ethernet

10/100 Base-T. Supports remote control and live view via Ethernet

Network Protocol

TCP/IP, PPPOE, DHCP and DDNS

Mobile Surveillance

App

Yes

Compatible Devices

iOS & Android devices

*Specifications are subject to change without notice
